Symbol Search Widget

Search results remain distinct from the resolved SymbolInfo used to change the active chart.

The built-in symbol search lives in the chart toolbar. It queries datafeed.searchSymbols, displays result metadata, and loads the selected symbol through the normal datafeed path. The UI flow and its states come first below, then the configuration and the datafeed contract. The two are independently testable: the flow against any conforming feed, the feed against the request and result shapes.

The query → results → select flow

1. Open. The user clicks the toolbar search control (or the host calls chart.openSymbolSearch(), optionally with an initial query). Typed input is uppercased by default (uppercase: true).
2. Query. After the debounce delay (requestDelayMs, default 200 ms), the widget calls datafeed.searchSymbols(request) with the typed text plus any selected exchange filter, asset-type filter, spread-operator flag, and the initiating surface in searchSource.

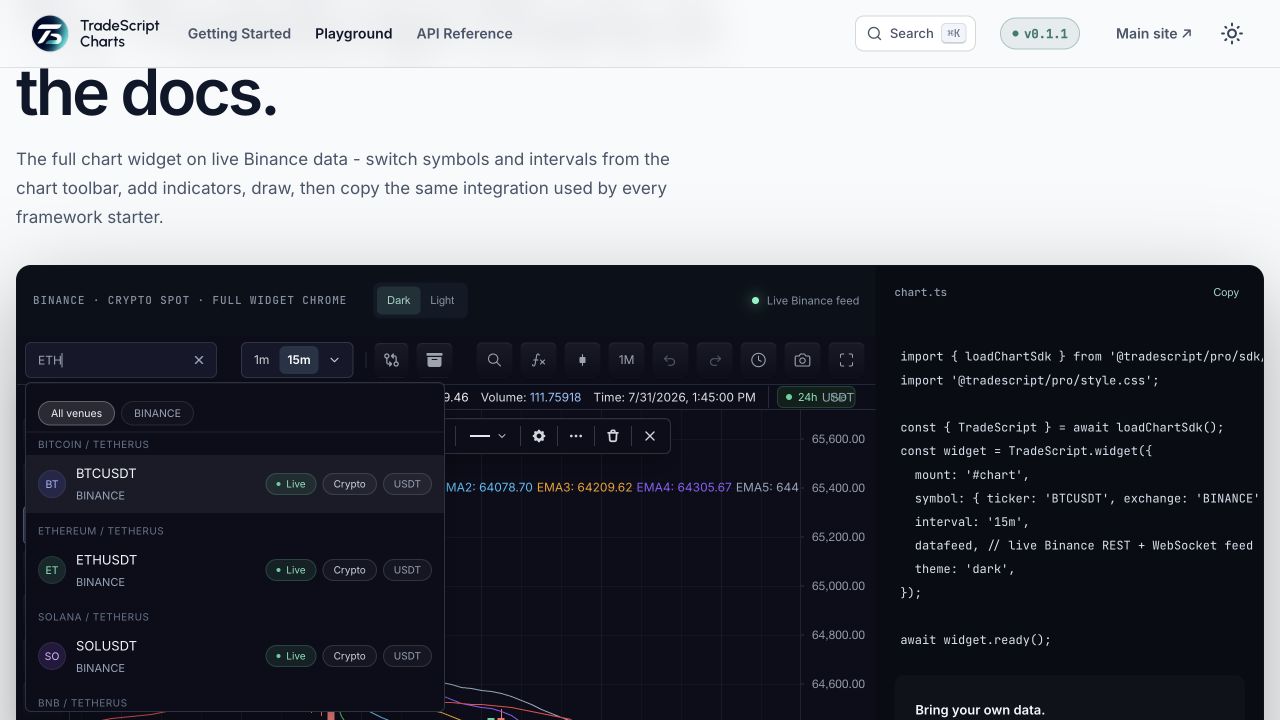

3. Results. Each returned row renders its ticker, short display symbol, name or description, exchange/type/currency/status/provider badges, and logos when enabled. If the last row carries nextCursor, scrolling near the end or pressing load-more requests the next page.
4. Select. The chosen symbol passes through the optional completeSymbol rewrite, then the chart loads it through the normal symbol-resolution path (resolveSymbol and bar loading). The dialog closes.

States

The result list has five observable states:

State	When	What the user sees
Default (idle)	Dialog open, no query issued yet	Input focused, filter controls, no result rows
Loading	Debounce elapsed, searchSymbols pending	Previous rows remain until the response lands
Ready	Response with one or more rows	Result rows; load-more affordance when a nextCursor is present
Empty	Response with zero rows and no cursor	"No matches found."
Error	searchSymbols rejected	"Unable to reach symbol search."

Both terminal strings are localizable through the standard resolver surface. A new keystroke returns the flow to the loading state; closing the dialog (Escape, selection, or chart.closePopups()) resets it.

Feature gates and toolbar relationships

The search surface appears only when both sides allow it:

• Datafeed capability: the feed declares supportsSearch in its MarketDataFeedConfig and implements searchSymbols.
• Widget policy: features.symbolSearch is enabled (default). Set it to false or { enabled: false } to hide the toolbar search entirely — for example when the host owns symbol navigation.

The same search widget is reused by other surfaces, which identify themselves through searchSource: 'symbolSearch' (toolbar), 'watchlist' (add symbol), 'compare' (comparisons dialog), and 'indicatorInputs' (symbol-valued indicator inputs). Symbol-valued indicator inputs configure their spread-operator policy separately with features.indicatorInputs.symbolSearch.

Enable or disable

import { createTradeScriptSdk } from '@tradescript/pro/sdk/core';

const sdk = await createTradeScriptSdk({ lease: deploymentLease });
sdk.chart.mount({
  mount: container,
  symbol: 'NASDAQ:AAPL',
  datafeed,
  features: {
    symbolSearch: true,
  },
})

Hide the toolbar search:

features: {
  symbolSearch: false,
}

or:

features: {
  symbolSearch: { enabled: false },
}

Configure behavior

sdk.chart.mount({
  mount: container,
  symbol: 'NASDAQ:AAPL',
  datafeed,
  features: {
    symbolSearch: {
      enabled: true,
      requestDelayMs: 150,
      uppercase: true,
      showLogos: true,
      showExchangeLogos: true,
      showSpreadOperators: true,
      spreadOperators: {
        exponentiation: true,
        reciprocal: true,
      },
      exchanges: [
        { value: 'NASDAQ', label: 'Nasdaq' },
        { value: 'NYSE', label: 'NYSE' },
      ],
      assetTypes: [
        { value: 'stock', label: 'Stocks' },
        { value: 'crypto', label: 'Crypto' },
      ],
      completeSymbol({ symbol }) {
        return symbol?.canonicalSymbol
          ? { ...symbol, ticker: symbol.canonicalSymbol }
          : symbol ?? ''
      },
    },
  },
})

Options:

Option	Behavior
requestDelayMs	Debounce delay before calling searchSymbols. Defaults to 200 ms.
uppercase	Uppercase typed input before display/search. Defaults to true.
showLogos	Render logoUrls[0], logoUrl, or logo on results.
showExchangeLogos	Render exchangeLogoUrl on results.
showSpreadOperators	Renders spread-operator controls and sends includeSpreadOperators: true to the datafeed.
searchSource	Sends the initiating surface to the datafeed (symbolSearch, watchlist, compare, or indicatorInputs).
spreadOperators	Controls individual operator buttons. plus, minus, multiply, and divide default to showSpreadOperators; exponentiation (^) and reciprocal (1/x) default off.
exchanges	Renders exchange filter controls and forwards selected exchange.
assetTypes	Controls visible type categories and forwards selected assetType.
completeSymbol	Rewrites the selected symbol before chart navigation.

Programmatic control

const mounted = sdk.chart.mount({ mount: container, symbol: 'NASDAQ:AAPL', datafeed })
const chart = (await mounted.ready()).chart()

chart.openSymbolSearch()
chart.closePopups()

openSymbolSearch() focuses and opens the toolbar search. closePopups() closes symbol search and other chart popovers managed by the chart surface.

Pagination

If your datafeed returns nextCursor on a search result, the widget requests the next page when the user scrolls near the end of the result list or presses the load-more button.

async searchSymbols(request) {
  const page = await fetchSymbols(request)
  return page.results.map((symbol, index) => ({
    symbol,
    nextCursor: index === page.results.length - 1 ? page.nextCursor : undefined,
  }))
}

Result metadata

The widget renders:

• ticker
• short display symbol from SymbolInfo.shortName when provided
• name or description
• exchange/type/currency/status/provider badges
• symbol logo
• exchange logo
• structured group label or root

Provide those fields through SymbolInfo from your datafeed.
