Toolbars

Two toolbars frame the chart: a horizontal strip above it and a vertical drawing rail down its left edge. Both appear in every full-chrome widget, and every control in them — symbol search, interval, timezone, storage, screenshots, and host-defined actions — is individually gated by features.

Top toolbar anatomy

BTCUSDT · 15m · dark theme — top toolbar captured from the live playground.

Twelve controls run left to right:

1. Symbol box (BTCUSDT with clear button) — shows the active symbol and opens symbol search. Gated by features.symbolSearch. See Symbol Search Surface.
2. Interval favorites and picker (1m, active 15m, chevron) — favorites stay inline; the chevron opens the interval menu. See Resolution.
3. Compare — opens the compare-symbols dialog. Gated by features.comparisons. See Comparisons.
4. Layout storage — save/load layout menu. Gated by features.layoutStorage. See Storage.
5. Symbol search button (magnifier) — built-in action open-symbol-search.
6. Indicators (fx) — opens the indicator dialog; built-in action open-indicators, gated by features.builtInIndicators. See Indicators.
7. Chart type (candle icon) — opens the chart-type menu. Gated by features.chartTypes.
8. Time range (1M) — opens the range presets menu backed by ChartWidgetOptions.timeFrames. See Time Scale.
9. Undo / redo — built-in actions undo and redo.
10. Timezone (clock) — opens the timezone selector. See Timezone Selector.
11. Snapshot (camera) — capture/export menu; built-in action take-snapshot. See Snapshots.
12. Fullscreen — toggles full-window chrome; fullscreen: true starts the widget that way.

Drawing toolbar anatomy

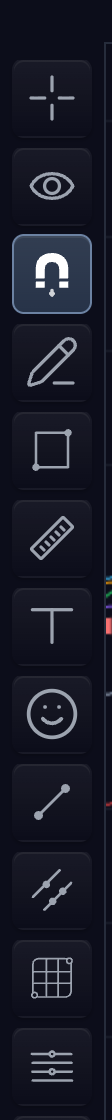

BTCUSDT · 15m · dark theme — left drawing toolbar captured from the live playground.

Five groups run top to bottom:

1. Cursor/crosshair control — pointer behavior over the chart.
2. Visibility toggle — hide or show all drawings (also built-in action toggle-all-drawings).
3. Magnet mode (highlighted) — snaps drawing points to bar values.
4. Tool family buttons — lines, shapes, measure, text, emoji, trend-line, Fibonacci, and pattern families; each opens a flyout with the family's tools.
5. Remove and lock controls (lower rail) — delete drawings and lock the drawing layer.

The whole rail is gated by features.drawings; per-tool access is controlled by features.drawingTools. Favorite tools also surface as a compact row near the legend, positioned by ChartDisplaySettings.favoritesToolbar ('legend' | 'sidebar' | 'floating' | 'both').

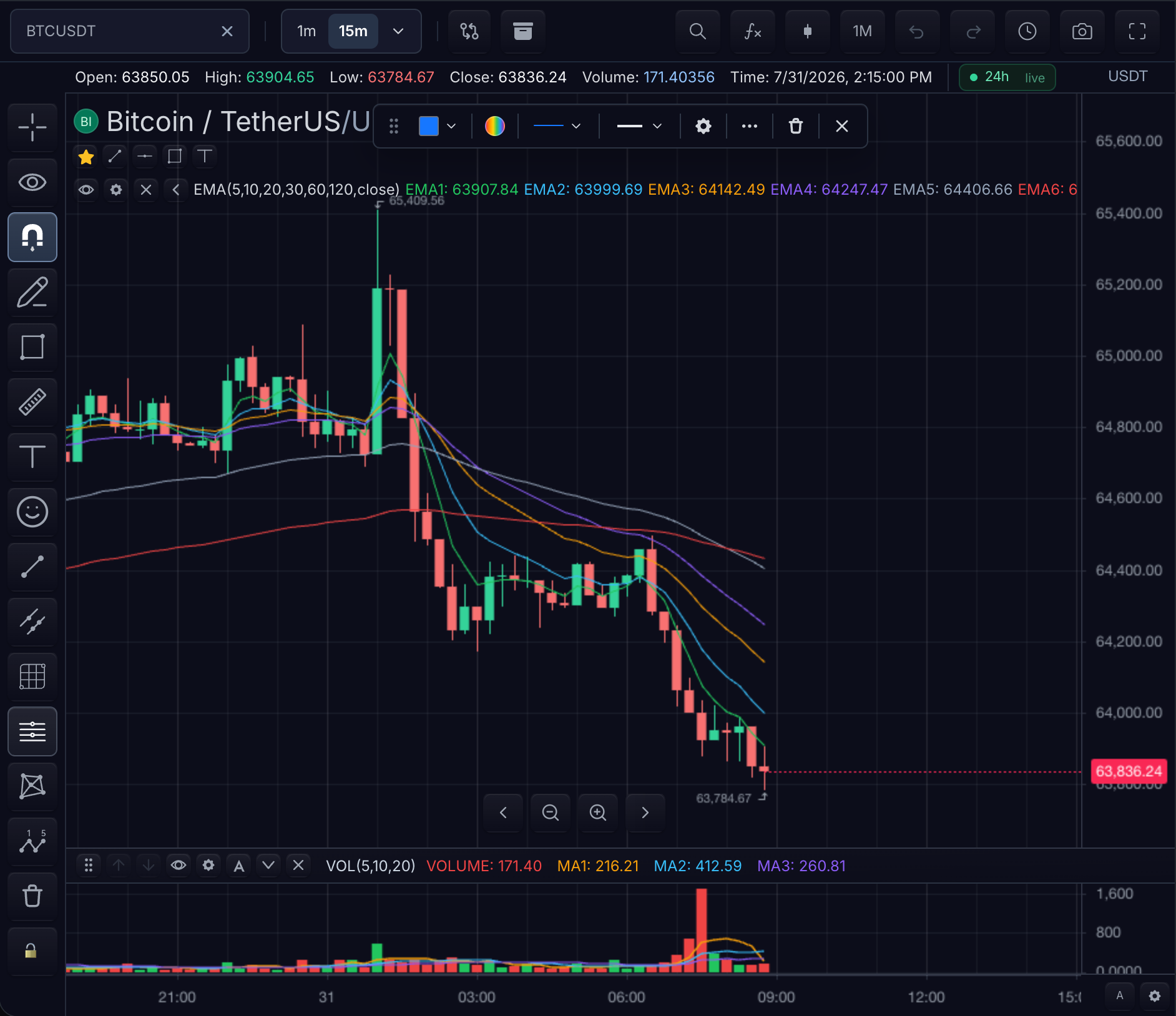

Drawing rail with the floating drawing toolbar open · dark theme — selecting a tool or drawing raises this toolbar; captured from the live playground.

Menus opened from the toolbar

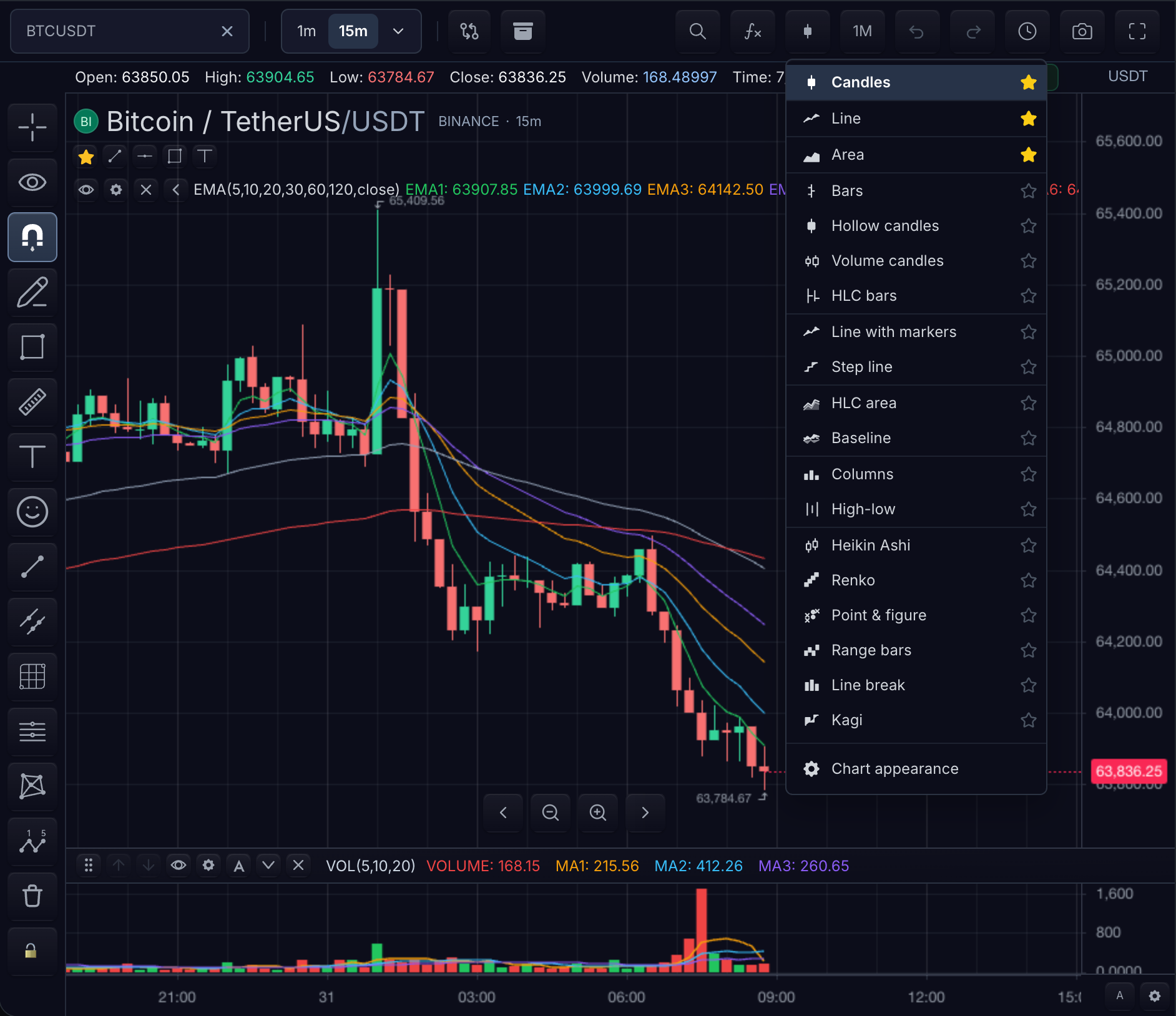

Chart type menu open · BTCUSDT · 15m · dark theme — starred entries become toolbar favorites.

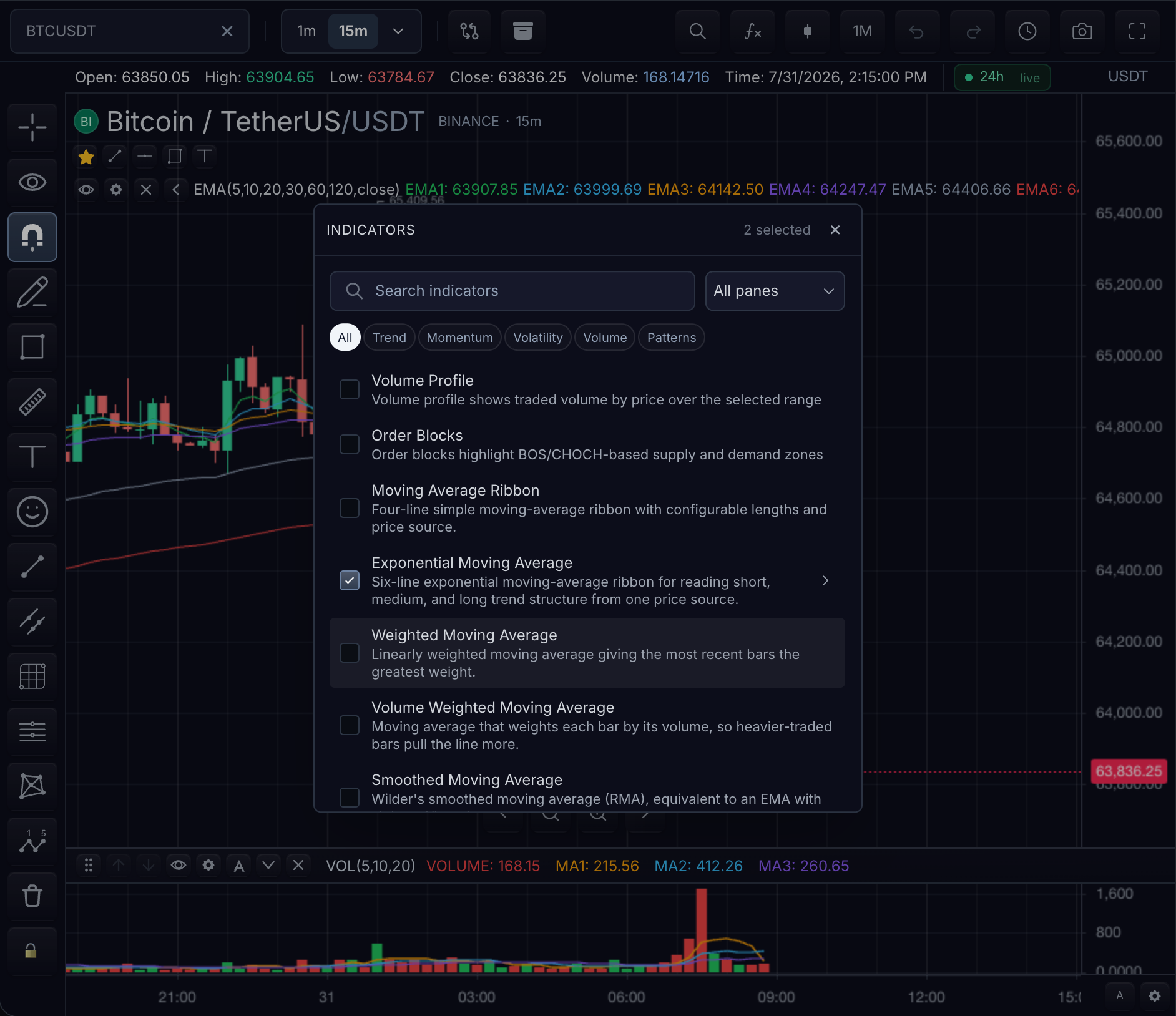

Indicators dialog open · BTCUSDT · 15m · dark theme — opened from the fx toolbar button.

Regions and feature gates

Region	Representative actions	Gate or customization
Symbol and interval	Search, favorites, picker	features.symbolSearch, interval capabilities
Data and indicators	Compare, indicators, chart type	features.comparisons, features.builtInIndicators, features.chartTypes
Storage and capture	Layout/template menu, snapshot	features.layoutStorage, snapshot configuration
History and view	Range, undo/redo, timezone, fullscreen	Built-in actions and display settings
Drawing rail	Tool families, magnet, visibility, remove	features.drawings, features.drawingTools, favorites
Host actions	Registered buttons and groups	registerAction + setToolbar

Hidden and disabled states

• A false feature gate removes its whole region: for example features.drawings: false removes the drawing rail and features.symbolSearch: false removes the symbol box and search button.
• customization().setToolbar({ actionIds }) controls exactly which action IDs render; IDs left out are hidden without being unregistered.
• features.actions: false hides host-owned registered actions from SDK toolbar, context-menu, and custom-shortcut projection; built-in shortcut actions stay governed by features.shortcuts.
• Interval entries the current symbol or feed cannot serve appear disabled in the picker rather than silently failing — see Resolution.
• On compact layouts, keep primary actions reachable, move secondary actions into an overflow menu, retain accessible names for icon-only buttons, and never rely on hover to expose the only label.

Current surface

• features controls large toolbar areas such as drawing tools, built-in indicators, symbol search, storage, replay, trading, order flow, and context menus.
• customization().registerAction(...) creates host-owned actions.
• customization().setToolbar(...) controls visible/hidden action IDs and renders grouped action IDs as toolbar dropdowns.
• BUILT_IN_ACTIONS, BUILT_IN_ACTION_IDS, and listBuiltInActions() expose the SDK-owned built-in action inventory for host toolbars, shortcut remapping, and migration shims.
• Drawing settings route through the drawing toolbar and tool-specific settings surfaces.

import { BUILT_IN_ACTION_IDS, listBuiltInActions } from '@tradescript/pro/sdk';

const builtInIds = new Set(BUILT_IN_ACTION_IDS);
const toolbarIds = listBuiltInActions()
  .filter((action) => builtInIds.has(action.id))
  .filter((action) => ['open-symbol-search', 'open-indicators', 'take-snapshot'].includes(action.id))
  .map((action) => action.id);

chart.customization().setToolbar({
  actionIds: toolbarIds,
});

Use ToolbarCustomization.groups to compose grouped toolbar actions and dropdowns.

Mobile Toolbar

features.mobileToolbar: true switches the top period bar into compact mobile chrome: wrapping rows, smaller gaps, flexible symbol search width, and icon-only text-bearing actions such as watchlist, options, trade, and add-execution.

sdk.chart.mount({
  mount: '#chart',
  symbol: 'AAPL',
  interval: '1D',
  datafeed,
  features: {
    mobileToolbar: true,
  },
});

This does not infer device type from the viewport. Hosts that want breakpoint-driven behavior should toggle features.mobileToolbar from their own layout state.
