Timezone Selector

The chart timezone controls how times are displayed. Users change it from the timezone selector in the top toolbar; hosts set it at construction or at runtime, and can add friendly aliases to the selector.

For the wider model — exchange, chart-display, browser, and session timezones and how they compose — see Timezones.

The selector

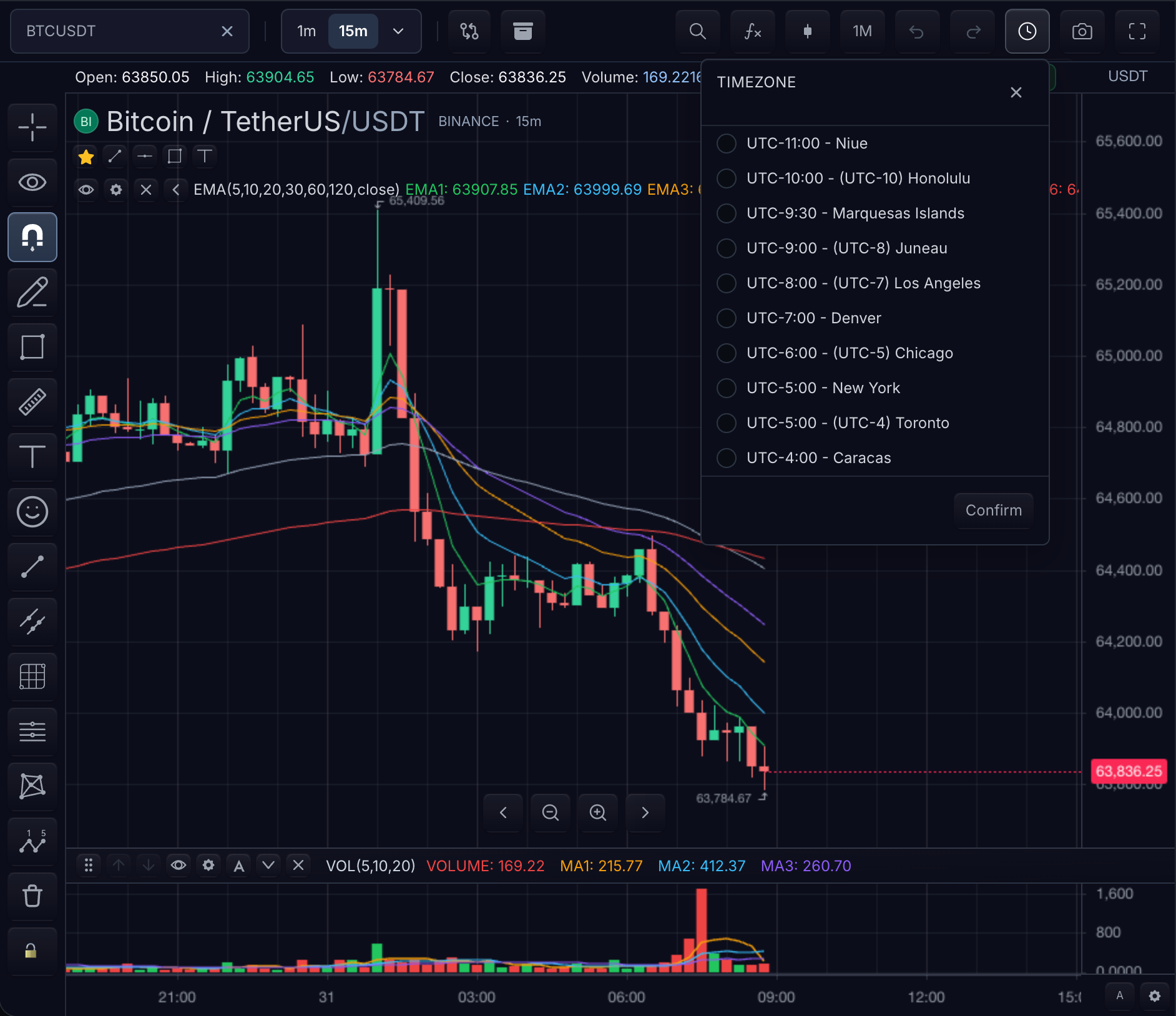

Timezone menu open · BTCUSDT · 15m · dark theme — captured from the live playground.

Three controls make up the selector:

1. Timezone list — each row pairs a UTC offset with a market city label (for example UTC-5:00 - New York). Entries include common IANA market zones and fixed-offset entries; hosts extend or relabel them with LocalizationSettings.timezoneAliases.
2. Radio selection and Confirm — the change applies to displayed scale and legend labels when confirmed.
3. The clock button in the top toolbar opens this modal — see Toolbars.

Changing the chart timezone changes displayed scale and legend labels. It does not change the UTC timestamps supplied by the feed or the exchange session definition.

Before and after

For a bar at 2026-07-31T13:30:00Z, a New York chart and a Colombo chart display different clock labels while both refer to the same bar:

Layer	New York chart	Colombo chart	Owner
Bar timestamp	2026-07-31T13:30:00Z	2026-07-31T13:30:00Z	Datafeed
Scale label	9:30 AM (America/New_York, UTC-4 in July)	7:00 PM (Asia/Colombo, UTC+5:30)	Chart timezone
Exchange session	Exchange schedule timezone	Same exchange schedule	SymbolInfo / session calendar
Number/date language	Active locale	Active locale	Localization

Keep the four layers separate when debugging:

• Scale labels — the only thing the chart timezone changes.
• Bar timestamps — always UTC epoch values from the feed; never rewritten by display settings.
• Exchange sessions — defined in the exchange's own schedule timezone via SymbolInfo.timezone and session calendars; shading and filtering follow the schedule, not the display zone.
• Browser locale — controls number and date language through Localization, not through the timezone selector.

Configuration mapping

Need	TradeScript surface
Initial chart timezone	ChartWidgetOptions.timezone
Symbol timezone	SymbolInfo.timezone
Runtime timezone	chart.customization().setTimezone(timezone)
Locale plus timezone	chart.customization().setLocalization(...)
Custom timezone aliases	LocalizationSettings.timezoneAliases
UI selector	Timezone modal in the chart toolbar

The built-in selector includes common IANA market zones and fixed-offset entries. Runtime APIs also accept arbitrary IANA timezone IDs when the host wants a zone that is not shown in the picker.

sdk.chart.mount({
  mount: '#chart',
  symbol: 'AAPL',
  interval: '1D',
  timezone: 'America/New_York',
  datafeed,
});

chart.customization().setTimezone('Asia/Colombo');

chart.customization().setLocalization({
  timezoneAliases: [
    { id: 'nyse-local', label: 'NYSE Local', timezone: 'America/New_York' },
  ],
});

Alias Contract

Aliases expose friendly names or fixed-offset market labels while still resolving to a concrete timezone.

Field	Meaning
TimezoneAlias.id	Stable alias ID
TimezoneAlias.timezone	Concrete IANA or fixed-offset timezone
TimezoneAlias.label	User-facing selector label
TimezoneAlias.offsetMinutes	UTC offset in minutes associated with the alias
TimezoneAlias.metadata	Host-defined passthrough data; the SDK does not interpret it

GMT-style aliases such as Etc/GMT+3 pass through as concrete timezone IDs. Hosts must choose aliases that match the intended daylight-saving behavior.
