Price Scale

The price scale is the vertical axis strip beside each pane: tick labels, the last-price label, and the currency/unit header. A pane can carry several strips on either side, each with a stable id, its own mode, and its own assigned sources. That is what makes comparisons, reassigned indicators, ratio geometry, and feed-side currency conversion possible without opening a second chart.

Common tasks first

Task	Setting or API	Check
Fit visible data	autoFit / reset price scale	All visible owned sources fit with configured margins
Change mode	axisType normal, percent, log, indexed-to-100	Tick labels and geometry change together
Move side	side or scale-slot placement	Axis strip moves without reassigning data
Put an indicator on its own scale	updateIndicator(..., { priceScale, priceScaleId })	Indicator and axis use the same scale ID
Convert currency/unit	setPriceScale({ currency, unitId })	Symbol re-resolves and data reloads through the feed

Anatomy

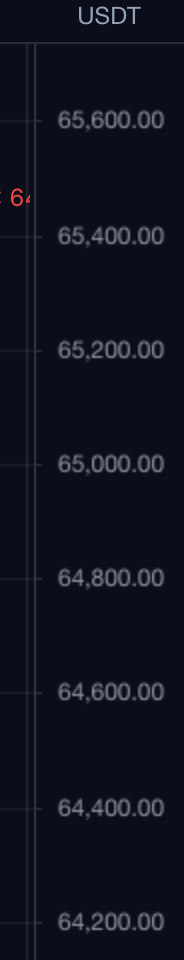

BTCUSDT · 15m · dark theme — right price scale captured from the live playground.

Three regions make up the scale column:

1. Currency/unit header (USDT) — visibility is PriceScaleSettings.currencyUnitVisibility.
2. Tick labels — spacing follows the scale transform; text formatting comes from SymbolInfo.pricePrecision, pricescale, minMove, tickSize, and priceFormat.
3. Last-price label — the highlighted current-price pill (visible in the full-terminal capture on Chart) is ChartDisplaySettings.showLastPriceLabel.

Ticks and last-value labels belong to one scale transform. Left, right, overlay, and host-defined slots use the same ownership model: every scale owns a set of sources (main series, indicators, comparisons) and its axis strip renders where those sources are assigned.

Appearance and placement

Need	TradeScript surface
Move scale left/right	side in PriceScaleSettings
Scale-control visibility	features.priceAxisScaleControls and ChartDisplaySettings.showPriceAxisScaleControls
Cropped edge tick labels	ChartDisplaySettings.showCroppedPriceScaleTickMarks. Defaults on so price labels anchored at the top or bottom of the axis can remain visible even when their text is partially cropped.
Hide all-hidden source scale	ChartDisplaySettings.hidePriceScaleIfAllSourcesHidden. Defaults to true. Every native scale evaluates the visibility of the main series, indicators, and comparisons that own it, and its axis strip disappears when the last visible source is hidden.
Empty/error scale clearing	ChartDisplaySettings.clearPriceScaleOnErrorOrEmptyBars. Defaults on so stale price ranges clear when the main series is empty or an initial main-series load error clears bars.

Modes and geometry

Need	TradeScript surface
Scale mode	chart.setPriceScale(...) with mode set to 'locked' or 'free'
Price-axis type	ChartDisplaySettings.priceAxisType and PriceScaleSettings.axisType use PriceAxisType (normal, percentage, logarithm, indexed-to-100)
Autoscale	autoFit in PriceScaleSettings
Invert/reverse	reverse in PriceScaleSettings
Top/bottom auto-scale margins	topMargin and bottomMargin in PriceScaleSettings
Visible price range	visiblePriceRange in PriceScaleSettings
Price-to-bar geometry	priceToBarRatio expresses price units per horizontal bar slot. The y range responds to chart height and bar spacing; priceToBarRatioLocked prevents manual y-scale resizing.

Each mode has a visible result: percentage and indexed-to-100 re-label ticks relative to the comparison base, logarithm compresses large ranges, reverse flips the axis, and locked stops manual y-drag from changing the transform.

Interaction and menus

Need	TradeScript surface
Native price-axis controls	The price-axis menu routes move-left/right, normal/percent/log/indexed-to-100 axis modes, invert, lock/free, currency/unit-label visibility, and reset through chart.setPriceScale(...) / chart.resetPriceScale()
Object properties editor	chart.showPropertiesDialog('price-scale:main') opens the native price-scale editor for mode, side, axis type, autoscale, inversion, currency/unit, menu visibility, conversion, pinned object ids, fixed visible range, auto-scale margins, price/bar ratio state, auto-scale scope, default indicator placement, and metadata. chart.showPropertiesDialog('price-scale:slot:<slotId>') opens the native slot editor for label, placement, pane target, order, description, and metadata.
Price-axis quick actions	ChartDisplaySettings.showPriceAxisActions controls the plus menu and emits price-axis-action for add-alert, buy-stop, sell-limit, add-order, and horizontal-line actions.
Built-in indicator scale picker	The price-axis menu lists active indicators, shows each current scale/slot label, and lets users choose built-in or host-defined scale slots

Series and indicator assignment

Need	TradeScript surface
Pin sources to scale	pinnedObjectIds in PriceScaleSettings
Comparison placement	same-price-scale, same-percent-scale, new-price-scale, new-pane
Indicator scale placement	IndicatorDefinition.priceScale, priceScaleId, and paneId attach the source to the main scale, an independent left/right scale, or a hidden scale.
Indicator scale reassignment	chart.updateIndicator(indicatorId, { priceScale, priceScaleId, paneId }); the updated source ownership and strip placement apply to the live indicator.
Host-defined scale slots	priceScaleSlots define stable scale IDs. Multiple slots and their sources can share one pane while retaining independent transforms and ordered axis strips.
Source ownership	chart.getPriceScaleSources(scaleId, paneId?) lists the main series, indicators, and comparisons owned by that scale, including each source's pane, axis placement, and visibility.

Labels and lines

Need	TradeScript surface
Bar-close countdown	ChartDisplaySettings.showBarCountdown. The price scale consumes MarketDataFeed.getServerTime when the feed advertises supportsServerTime, then ticks locally from that server-time offset.
Visible average close line	ChartDisplaySettings.showAverageClosePriceLine, showAverageClosePriceLabel, and StyleOverrideSettings.averageClosePriceLine. The chart computes the average close from the currently visible bars and renders a dashed price line with an optional right-side label.
Visible high/low lines	ChartDisplaySettings.showHighLowPriceLines, showHighLowPriceLabels, and StyleOverrideSettings.highLowPriceLine. The chart computes the high and low from currently visible loaded bars.
Main-series, bid/ask, session, and indicator last-value labels	ChartDisplaySettings.showLastPriceLabel, showSeriesSymbolLabel, showExchangeInSymbolLabels, seriesLastValueMode, showBidAskLabels, showPrePostMarketPriceLabel, showIndicatorLastValue, and showIndicatorPlotLabels
Bid/ask quote lines	ChartDisplaySettings.showBidAskPriceLines plus StyleOverrideSettings.bidAskPriceLine. The chart uses MarketDataFeed.getQuotes / subscribeQuotes and draws only finite Quote.bid / Quote.ask values.
Previous-close line	ChartDisplaySettings.showPreviousClosePriceLine, showPreviousClosePriceLabel, and StyleOverrideSettings.previousClosePriceLine. The chart uses MarketDataFeed.getQuotes / subscribeQuotes and draws only finite Quote.previousClose values.
Crosshair price/time labels	styleOverrides.crosshair.horizontal.text and .vertical.text
Price formatting	SymbolInfo.pricePrecision, pricescale, minMove, tickSize, and priceFormat

Currency and unit

Need	TradeScript surface
Currency/unit conversion	chart.setPriceScale({ currency, unitId }) re-resolves the current symbol with SymbolResolveContext when the target differs from the current symbol currency/unit, reloads through the normal symbol-change path, and records currency, unitId, and conversion in PriceScaleSettings. The host datafeed supplies the converted symbol metadata and bars; see Datafeeds for cache-key and invalidation rules.
Currency/unit menu visibility	currencyMenuVisible and unitMenuVisible in PriceScaleSettings
Currency/unit label visibility	currencyUnitVisibility in PriceScaleSettings

Host-defined scale slots

Use priceScaleSlots when you want product-specific scale names and stable scale targets in the built-in indicator scale picker:

sdk.chart.mount({
  mount,
  symbol: 'AAPL',
  interval: '1D',
  datafeed,
  priceScaleSlots: [
    { id: 'momentum-left', label: 'Momentum', placement: 'new-left' },
    { id: 'hidden-normalizer', label: 'Hidden', placement: 'no-scale' },
  ],
});

The slot catalog persists in ChartState.priceScaleSlots and saved layouts. When paneId is omitted, the scale belongs to candle_pane. Give multiple slots the same pane ID to render independent ordered strips around one plot, or provide another pane ID when the scale belongs elsewhere.

Selecting a slot records priceScaleSlotId, applies the slot ID as priceScaleId, and attaches the source to the slot's pane. Multiple indicators assigned to the same slot share its transform and visibility ownership. Updating the slot catalog moves every owned source together. Removing a slot detaches the catalog identity while preserving the source's concrete placement.

Scale slots are first-class chart objects. They appear from chart.listObjects() as price-scale:slot:<slotId> rows with actions.properties and actions.remove; generic object APIs route those rows back through the native slot catalog.

Comparisons use this same scale registry. new-price-scale and same-percent-scale create native scale IDs and native axis strips; they do not paint labels over the main axis rectangle. Candles, comparisons, and indicators contribute visibility and range through one source-ownership model.
