Trading quickstart

TradingBrokerAdapter is the boundary between TradeScript Pro Charts and one broker or order-management session. Your application implements the adapter. The SDK wraps it in a TradingControllerApi that the chart and standalone trading widgets can share.

Start with two methods

getState and placeOrder are the only required adapter methods. That is a complete controller contract, not a promise that every trading surface is available. Add the specific rules, previews, market data, and mutations required by the surfaces you choose later.

The connection below can power all three examples. The standard ticket works once state declares order types and durations. Option and prediction-market tickets additionally need their asset-specific market data and previewOrder.

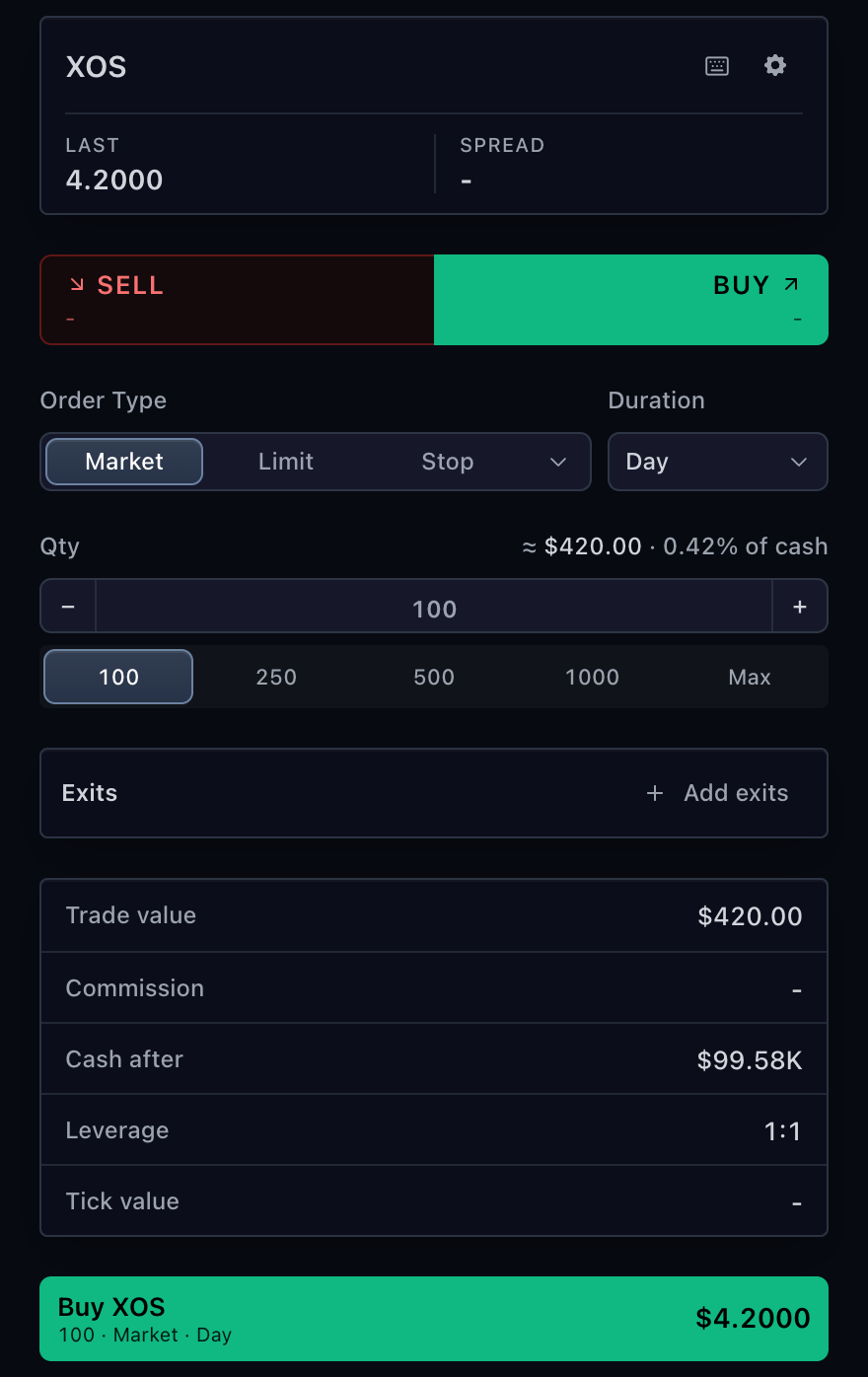

Standard order entry using broker-declared order choices and one shared trading controller.

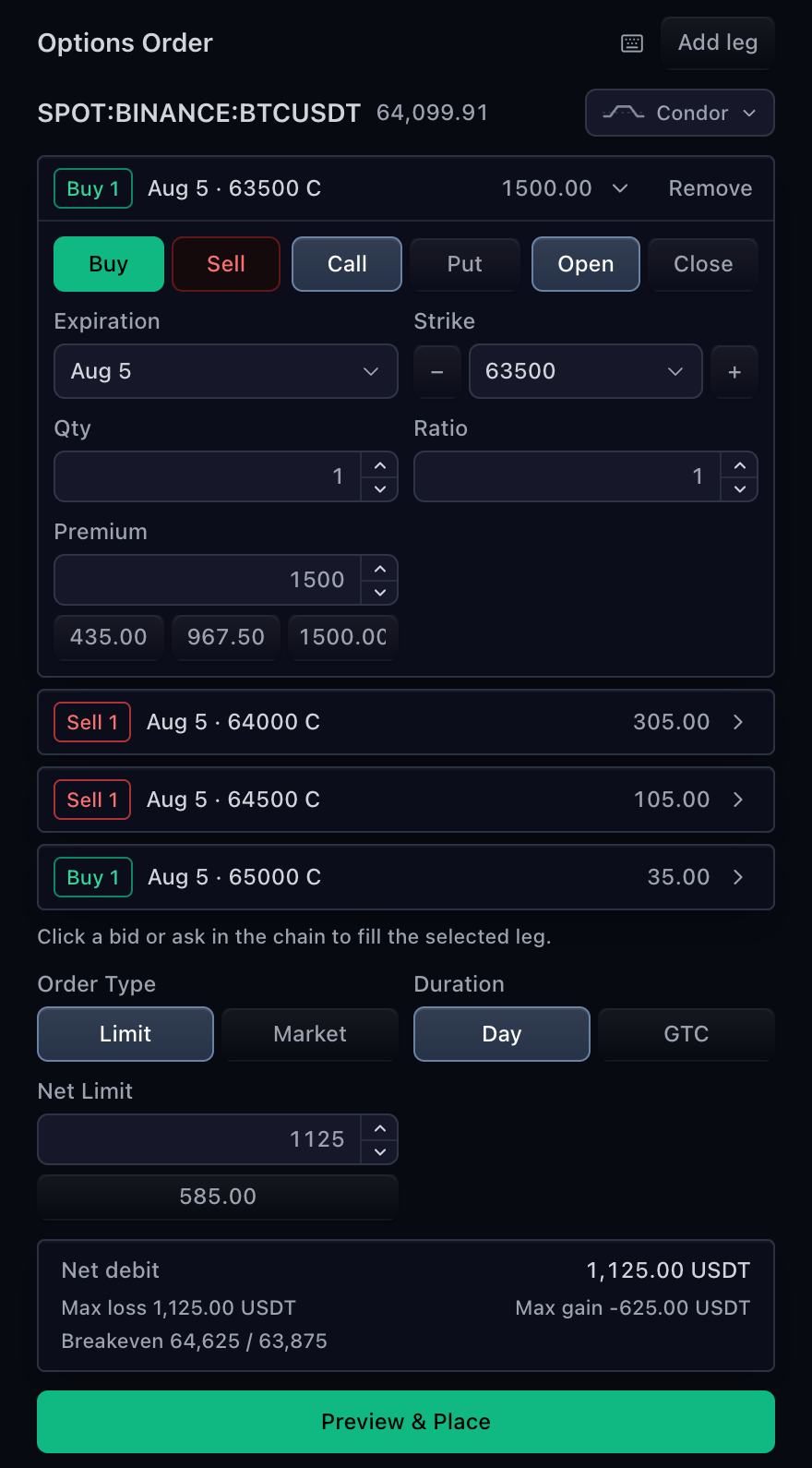

Options order entry using option market data, broker preview, and the same trading controller.

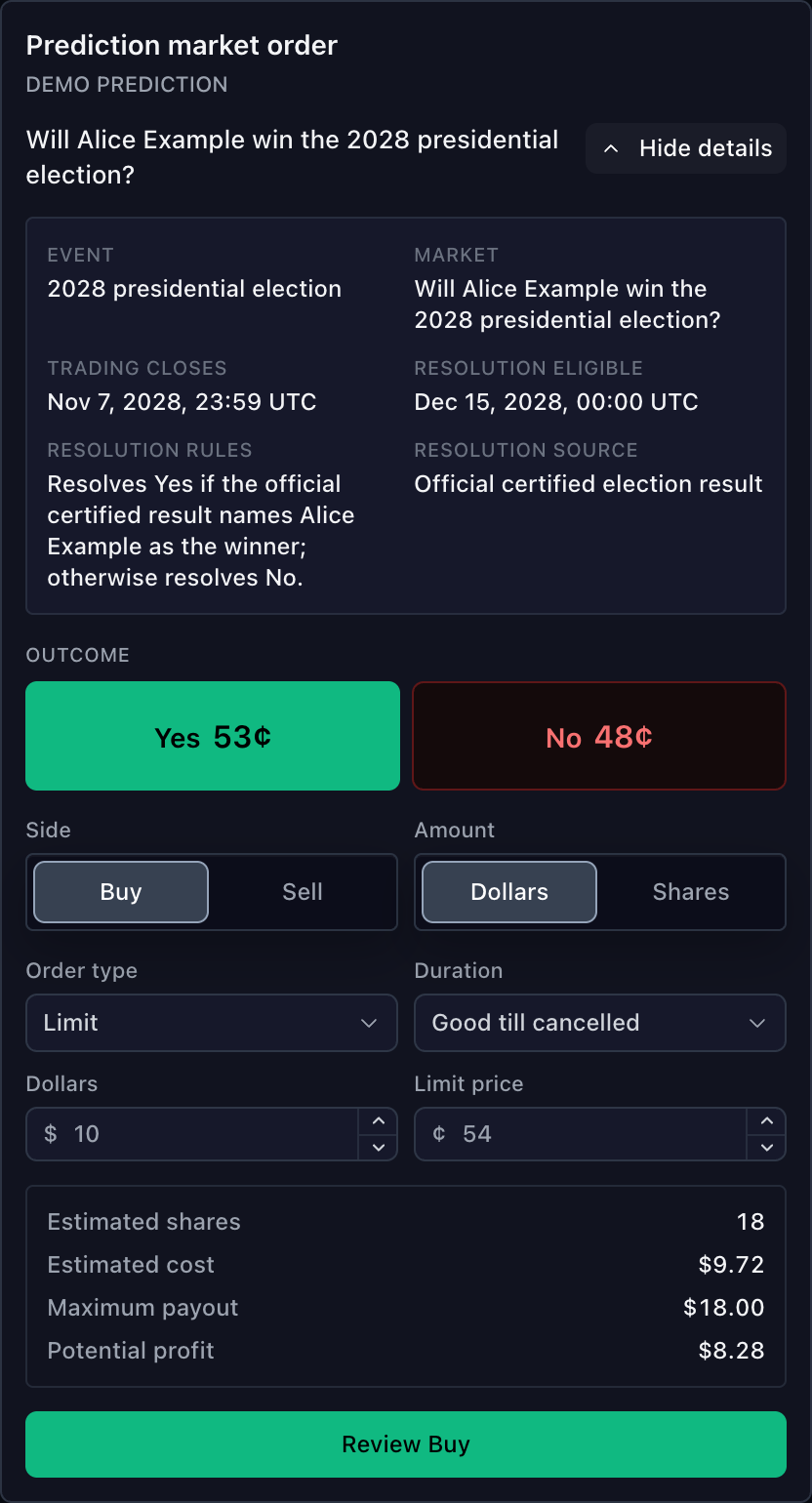

Prediction-market order entry with provider-authored contract details expanded, exact outcome instruments, live quotes, and broker preview.

Standard order ticket · Option order ticket · Prediction-market order ticket

Before you start

Have a deployment lease and a working MarketDataFeed ready. Step 2 mounts the chart into a #chart element with a real height. See the general chart Quickstart for installation and SDK setup.

How trading talks to your backend

Your backend owns financial truth. The SDK transports typed intents, maintains the current controller snapshot, and renders that snapshot.

An accepted placement response acknowledges the request. It does not create a chart line or table row. Publish the resulting order through adapter state or events when the backend reports it.

1. Implement the minimum adapter

This example calls two authenticated backend endpoints. Replace the declared parsers with your runtime schema validation; TypeScript types alone do not validate network responses.

broker.ts

import type {
  TradingBrokerAdapter,
  TradingPlaceOrderResult,
  TradingState,
} from '@tradescript/pro/sdk';

declare function parseTradingState(value: unknown): TradingState;
declare function parsePlaceOrderResult(value: unknown): TradingPlaceOrderResult;

export const broker = {
  executionEnvironment: 'paper',

  async getState() {
    const response = await fetch('/api/trading/state', {
      credentials: 'include',
    });
    if (!response.ok) {
      throw new Error(`Trading state request failed: ${response.status}`);
    }
    return parseTradingState(await response.json());
  },

  async placeOrder(draft, context, options) {
    const response = await fetch('/api/trading/orders', {
      method: 'POST',
      credentials: 'include',
      headers: { 'content-type': 'application/json' },
      body: JSON.stringify({ draft, context, mutation: options }),
    });

    // A transport failure does not prove rejection. The request may have
    // reached the broker, so reconcile authoritative state before retrying.
    if (!response.ok) {
      throw new Error('Order outcome is unknown; reconcile before retrying.');
    }
    return parsePlaceOrderResult(await response.json());
  },
} satisfies TradingBrokerAdapter;

getState() returns one complete snapshot. Required collections may be empty, but they must be present. This smallest useful response also declares enough account-level choices for the standard order ticket:

GET /api/trading/state

{
  "connectionStatus": "connected",
  "activeAccountId": "paper-primary",
  "features": {
    "supportsOrders": true,
    "supportsPositions": true
  },
  "accounts": [
    {
      "id": "paper-primary",
      "name": "Paper account",
      "currency": "USD",
      "isActive": true,
      "capabilities": {
        "supportsTrading": true,
        "supportedOrderTypes": ["market", "limit"],
        "supportedDurations": [
          { "type": "day", "label": "Day" },
          { "type": "gtc", "label": "GTC" }
        ]
      }
    }
  ],
  "orders": [],
  "positions": [],
  "executions": []
}

Keep credentials, final validation, idempotency, and risk checks on the backend. Use executionEnvironment: 'live' only when this adapter truly reaches a live financial account.

Verify before continuing:

• getState() returns the authenticated account and every required collection.
• A confirmed business rejection resolves as { accepted: false, ... }.
• A timeout, network loss, or uncertain server response rejects the request and is reconciled before any retry.

2. Attach the adapter to a chart

Passing broker creates a controller owned by this chart runtime. The example mounts the chart and enables its built-in trading affordances; it does not mount either standalone ticket pictured above.

trading-chart.ts

import {
  createTradeScriptSdk,
  type MarketDataFeed,
  type SdkSymbolInfo,
} from '@tradescript/pro/sdk/core';
import type { TradingBrokerAdapter } from '@tradescript/pro/sdk';

declare const broker: TradingBrokerAdapter; // The adapter from step 1.
declare const datafeed: MarketDataFeed;
declare const deploymentLease: string;

export const symbol: SdkSymbolInfo = {
  ticker: 'AAPL',
  exchange: 'NASDAQ',
  type: 'stock',
};

export const sdk = await createTradeScriptSdk({ lease: deploymentLease });
export const mounted = sdk.chart.mount({
  mount: '#chart',
  symbol,
  interval: '1D',
  datafeed,
  broker,
  features: { trading: true },
});

export const widget = await mounted.ready();
export const trading = widget.trading();

await trading.connect();
export const initialTradingState = await trading.getState();

export async function destroyTradingChart() {
  try {
    await trading.disconnect();
  } finally {
    mounted.destroy();
  }
}

connect() hands a TradingHost to adapters that implement connect; it does not load state. Call getState() explicitly after every initial connection or reconnect. When another composition supplies an existing trading controller, that host retains disconnect and destruction responsibility.

Verify before continuing:

• initialTradingState matches the backend snapshot exactly.
• The chart reaches ready() and exposes the same controller through widget.trading().
• Route teardown awaits disconnect and still destroys the mount if disconnect fails.

3. Render the standard order ticket

Pass the controller and exact symbol from step 2 into the React ticket. Supply a current price from market data; broker state is not a second quote feed.

OrderEntry.tsx

import type {
  SdkSymbolInfo,
  TradeScriptSdkProducts,
  TradingControllerApi,
} from '@tradescript/pro/sdk';
import {
  TradingOrderTicket,
} from '@tradescript/pro/react/widgets/order-ticket';

interface OrderEntryProps {
  sdk: TradeScriptSdkProducts;
  trading: TradingControllerApi;
  symbol: SdkSymbolInfo;
  currentPrice: number;
}

export function OrderEntry({
  sdk,
  trading,
  symbol,
  currentPrice,
}: OrderEntryProps) {
  return (
    <TradingOrderTicket
      sdk={sdk}
      controller={trading}
      symbol={symbol}
      currentPrice={currentPrice}
      defaultQuantity={1}
    />
  );
}

Submitting this ticket calls the adapter's placeOrder. An acknowledgement may update ticket feedback, but only the next authoritative event or await trading.getState() may add the order to controller state.

Verify before continuing:

• One submit produces one backend order request with the exact symbol, account, draft, context, and supplied mutation metadata.
• A confirmed rejection stays rejected and never appears as a working order.
• An accepted acknowledgement creates no row or chart line until the backend reports the order.

4. Add only what your product needs

Adapter capabilities

trading.getOperationSupport() is the synchronous authority for callable controller operations. It includes controller-owned operations and documented fallbacks, not just a one-to-one reflection of adapter methods. Entitlements and risk wiring may narrow the returned map.

Read await trading.getFeatures() separately for asynchronous broker/account facts that may narrow what the UI should offer in the current session. Those features never widen structural operation support.

Product capability	Adapter methods to add	Guide
Backend-pushed state	Choose subscribe, or connect(host) with host.emit / host.setState	State and events
New-order preview	previewOrder	Orders
Working-order modification	previewModifyOrder, modifyOrder as supported	Orders
Cancellation	cancelOrder; optionally cancelOrders or atomic cancelAllOrders	Orders
Position actions	Add only the preview, modify, close, reverse, or flatten methods you support	Positions
Account switching	setActiveAccount; listAccounts otherwise falls back to fresh state	Accounts, capabilities, and symbol rules
Symbol tradability and rules	getTradingSymbolInfo, or isTradable for the controller fallback	Accounts, capabilities, and symbol rules
Custom Account Manager content	getAccountManagerInfo and the table methods your pages use	Account Manager
Broker option routing	resolveOptionContract when venue-native contract identity is required	Option order ticket

The presence of controller connect or subscribe does not prove that the adapter has a live-update transport; those controller operations are always available. Treat adapter transport configuration as an integration fact.

Surfaces and prerequisites

User need	Surface	Beyond the two-method minimum
Stock, fund, forex, futures, or crypto entry	TradingOrderTicket	Order types and durations in state, or broker symbol rules
Broker-defined ticket fields	TradingOrderTicket with options={{ fieldLayout }}	A typed field layout from the host or broker settings
Single-leg or multi-leg options	OptionOrderTicket	Option contracts and quotes from market data, plus previewOrder
Exact prediction-outcome entry	PredictionMarketOrderTicket	Exact outcome symbols and quotes, plus previewOrder
Orders and actions on a chart	Built-in chart trading	features.trading and the relevant adapter capabilities
Orders, positions, fills, and custom account pages	TradingAccountPanel	Base state plus getAccountManagerInfo metadata declaring every standard or custom page
Complete linked workspace	BrokerTradingTerminal	Market data; add one broker adapter or trading controller for order and account surfaces

Within one broker session, pass the same controller to the chart and standalone widgets. In a multi-chart mount, per-chart broker values create per-chart controllers. Inject one widget-level trading controller only when the charts should intentionally share that authority.

Live chart and order-entry prices remain a separate authority. Historical bars, quotes, depth, tape, sessions, option series, and prediction-outcome quotes come from MarketDataFeed. Broker-owned position valuation fields such as marketPrice and P&L do not turn trading state into a second market-data feed.

Production concerns

Identity

Carry exact SdkSymbolInfo, account, order, position, execution, and contract identities through every request and update. Display tickers and labels are not execution keys.

State ordering

Load a fresh snapshot at connect or reconnect, then resume events after that snapshot boundary. TradingEvent has no global revision, so the adapter must buffer, serialize, or watermark a racing backend stream.

Financial mutations

Authenticate and revalidate every mutation on the backend. Preserve supplied operation metadata, add a backend correlation id, and reconcile authoritative state before retrying an uncertain request.

Next steps

• Broker integration — add authenticated mutations, ordered live updates, reconnect reconciliation, and production verification.
• State and events — publish coherent snapshots across fills and reconnects.
• Order Ticket — configure the standard entry form beyond the minimum example.
• Trading surfaces — choose chart trading, Account Manager, or a complete terminal without creating another authority.
• Chart trading — configure on-chart actions and auxiliary entry surfaces.
• Account Manager — configure account pages, tables, and row actions.
• Trading terminal — compose chart, market data, trading, and account surfaces.
