Feature Gates

ChartFeatures is the typed product-capability contract for a chart widget. Use it to decide which controls and workflows are available without coupling application code to chart implementation details.

Each visible control corresponds to a feature or capability decision. Disabled and hidden states must agree with adapter support and host policy.

Gate by user surface

Surface	Decision inputs	Required consistency
Symbol and data controls	Datafeed capabilities plus symbol-search, interval, and comparison settings	Do not show options the feed cannot resolve/load
Indicators and drawings	Product entitlement plus indicator/drawing feature objects	Remove or preserve active objects according to documented lifecycle
Storage and templates	Storage adapter plus storage feature gates	Hide actions when no implementation exists
Trading and order flow	Broker capabilities plus host permission	Never expose an action the broker will always reject
Accessibility and shortcuts	Host policy plus accessibility/shortcut settings	Preserve an alternate path when hiding chrome

sdk.chart.mount({
  mount: '#chart',
  symbol: 'AAPL',
  interval: '1D',
  datafeed,
  features: {
    symbolSearch: {
      showLogos: true,
      showExchangeLogos: true,
      allowArbitraryInput: false,
    },
    chartTypes: ['candles', 'line', 'area'],
    customIntervals: ['1m', '5m', '15m', '1H', '1D'],
    comparisons: {
      enabled: true,
      showSymbolLabels: true,
      extendTimeScale: false,
    },
    drawings: {
      enabled: true,
      persistenceMode: 'embedded',
    },
    builtInIndicators: true,
    templates: true,
    contextMenu: true,
    objectTree: true,
    userSettings: true,
    shortcuts: true,
  },
});

Defaults, owners, and runtime changes

Three rules apply to every gate in the matrix below:

• Default: a gate is enabled unless set to false, except where the Default column says otherwise. Gates with an external dependency are enabled only while that dependency is met.
• Owner: a gate controls availability only. The state it exposes belongs to the owner listed under Feature Ownership; the gate never becomes a second state store.
• Runtime mutability: the runtime counterparts that exist are chart.customization().setShortcuts(...), setToolbar(...), and setContextMenu(...), which adjust behavior within an enabled gate.

features is fixed at construction

There is no setFeatures. Turning a gate on or off requires recreating the widget, so decide feature policy before you mount. Plan any product tier that changes a user's available features as a remount, not a live update.

Capability matrix by surface

Symbol and market data

Gate	Default	Affected UI	Depends on
symbolSearch	On	Search input, filtering, logos, arbitrary-input policy, request behavior	—
comparisons	On	Comparison search, symbol labels, time-scale extension	—
watchlist	On while supported	Watchlist panel and toolbar entry	Datafeed getWatchlist and updateWatchlist
news	On while supported	News panel	Datafeed getNews
details	On	Instrument details panel	—
dataWindow	On	Data-window panel	Market-data controller attached
marketEvents	On	Market-event markers	Configured event providers
sessionBadge	On	OHLC-row market session badge, variant, popover	—
sessions	On	Session shading, break lines, extended-hours selector	—
orderFlow	On while supported	Order-flow overlays dropdown (footprint, liquidity heatmap)	Datafeed depth: getDepth or subscribeDepth
invalidSymbol	On	Visible state for unresolved symbols or failed initial history	—

Chart canvas, indicators, and drawings

Gate	Default	Affected UI	Depends on
chartTypes	On; array restricts	Chart-type selector and available types	—
customIntervals	On	Custom-interval entry in the interval selector	—
intervalFamilies	Policy object	Interval families offered before datafeed/symbol narrowing	—
drawings	On	Drawing tools, rail visibility, storage mode, sharing	Persistence additionally needs a storage adapter with drawing operations
drawingTools	All tools	Restricts the available drawing-tool ids	drawings enabled
builtInIndicators	On; array restricts	Built-in indicator catalog, exclusions, disabled states, defaults	—
customIndicators	On	Registered custom indicators and time-scale extension	Host-registered indicator definitions
indicatorInputs	On	Indicator input editing and symbol-valued input search	—
replay	On	Bar replay controls	Replay controller wired; state persistence needs the storage adapter
offscreenRenderSuspend	On	Suspends engine layout/paint while the chart is scrolled off-screen	—
chartControls	On	Floating quick buttons, pane-header controls, settings-dialog presentation	—

Toolbars, menus, and input

Gate	Default	Affected UI	Depends on
contextMenu	On	Chart, scale, and object context menus	—
shortcuts	On	Widget-root keyboard actions (runtime: setShortcuts)	—
actions	On	Custom-action registration surface	—
mobileToolbar	Off (opt-in)	Mobile toolbar	—
priceAxisScaleControls	On	Price-axis scale controls and quick actions	—
objectTree	On	Object-tree panel visibility and interactions	—

Storage and workspace

Gate	Default	Affected UI	Depends on
layoutStorage	On while supported	Chart-layout persistence, storage toolbar entry, favorites	Storage adapter chart-layout operations
workspaceTabs	Off (opt-in)	Named chart-layout tabs, restoration, autosave, tab strip	Chart-layout storage adapter
workspaceLayoutControls	On (multi-chart)	Native multi-chart split/remove/sync controls	Multi-chart widget
workspaceLegend	Per-chart saved settings	Multi-chart legend display policy	Multi-chart widget
userSettings	On	User-setting API and optional persistence	Persistence needs storage adapter user-settings operations
templates	On	Chart, indicator, and drawing template workflows plus the storage-menu entry (chart / indicator / drawing / toolbar / importExport sub-flags)	Template storage via the storage adapter

Trading

Gate	Default	Affected UI	Depends on
trading	On	On-chart trading affordances, order ticket, depth ladder, account manager, price-axis order UI, notifications	Broker adapter attached for live actions
alerts	On	Alert creation UI and overlays	—

Boolean and object forms

Many capability groups accept either a boolean or an object. Use the boolean form when only availability matters and the object form when the feature has its own policy.

features: {
  drawings: true,
  workspaceTabs: {
    enabled: true,
    restoreActive: true,
    autoSave: { delayMs: 1200 },
    maxVisible: 8,
  },
  userSettings: {
    enabled: true,
    persistence: false,
  },
}

Feature ownership

A feature gate controls availability; it does not become a second state store.

• Chart-layout identity and persistence belong to ChartWorkspaceLayoutController.
• Chart state belongs to ChartApi and ChartState.
• Visual values belong to CustomizationState, ChartTheme, and typed style settings.
• Data capability truth belongs to MarketDataFeed and SymbolInfo.
• Broker actions belong to TradingBrokerAdapter.
• Widget and terminal panel arrangement belongs to WidgetLayoutState and its separate widget layout storage boundary, outside chart workspace storage.

Host-owned UI

The SDK intentionally leaves application-shell concerns to the host. Compose navigation, account management, page routing, onboarding, permission prompts, and terminal panel arrangement around the chart. Register chart actions with chart.customization().registerAction(...) when host UI needs to invoke chart behavior.

Why typed features

Typed features provide:

• editor autocomplete and compile-time validation
• clear ownership for nested policies
• stable persistence and inspection
• explicit defaults
• direct mapping from product requirements to SDK configuration

Unknown or invalid fields are reported by customization inspection instead of being silently forwarded into the runtime.

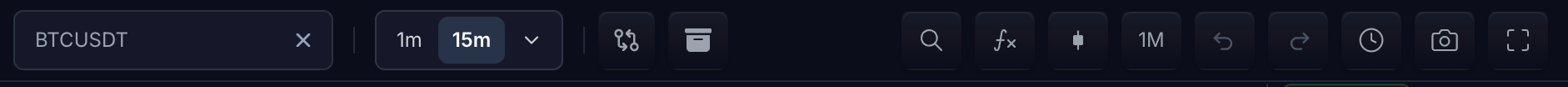

Built-in controls

Every control the SDK renders has a public identity, on the same terms as the actions you register yourself. Host-registered actions are ordered and hidden by id through toolbar.groups, toolbar.actionIds, and toolbar.hiddenActionIds; built-in controls carry the same three facts — a stable id, the surface that owns them, and the typed option that gates them.

import {
  BUILT_IN_CONTROLS,
  getBuiltInControl,
  listBuiltInControlsForSurface,
} from '@tradescript/pro/sdk';

listBuiltInControlsForSurface('period-bar').map((control) => control.id);
// ['toolbar', 'toolbar.hints', 'toolbar.quick-search', 'toolbar.interval-selector', ...]

getBuiltInControl('toolbar.screenshot');
// { id, label: 'Screenshot', surface: 'period-bar', group: 'export',
//   visibility: { option: 'toolbar', field: 'screenshotButtonVisible' } }

Each entry's visibility names the option that shows or hides it today, so the id and the switch are never out of step:

chart.customization().setToolbar({ screenshotButtonVisible: false });

Surfaces are period-bar, drawing-sidebar, chart-canvas, pane-header and time-scale; CHART_CONTROL_SURFACES lists them. Resolve ids with isBuiltInControlId — exact inventory membership, never an id prefix.

Scope of the control inventory

The inventory supplies identity and gating: every built-in control has a public id, a surface owner, and the typed option that shows or hides it. Ordering those ids alongside your own controls, replacing what one renders, and adding controls of your own build on the same ids — see Toolbar and Settings Extensions.
