Storage quickstart

TradeScript exposes two independent storage boundaries:

Boundary	Contract	What it owns
Chart storage	ChartStorageAdapter	Chart layouts and the separate drawing, template, user-setting, and replay-state objects used by charts
Widget layout storage	WidgetLayoutStorageAdapter	The outer widget panel arrangement of charts, order tickets, watchlists, and other panels

This quickstart establishes chart storage with a chart layout first. If you omit storage, the chart uses a default browser-local ChartStorageAdapter. This enables local chart layout save and load actions, but does not persist widget panel arrangements or automatically restore the last chart. When chart state must follow an authenticated user across browsers or devices, pass the built-in chart REST adapter or your own ChartStorageAdapter.

Start with one storage boundary

Chart workspace layouts provide the smallest visible end-to-end integration: save the current workspace, list it, load it, and delete it. Add widget layout storage only when the product also needs to restore a composed Trading Terminal or WidgetLayoutContainer.

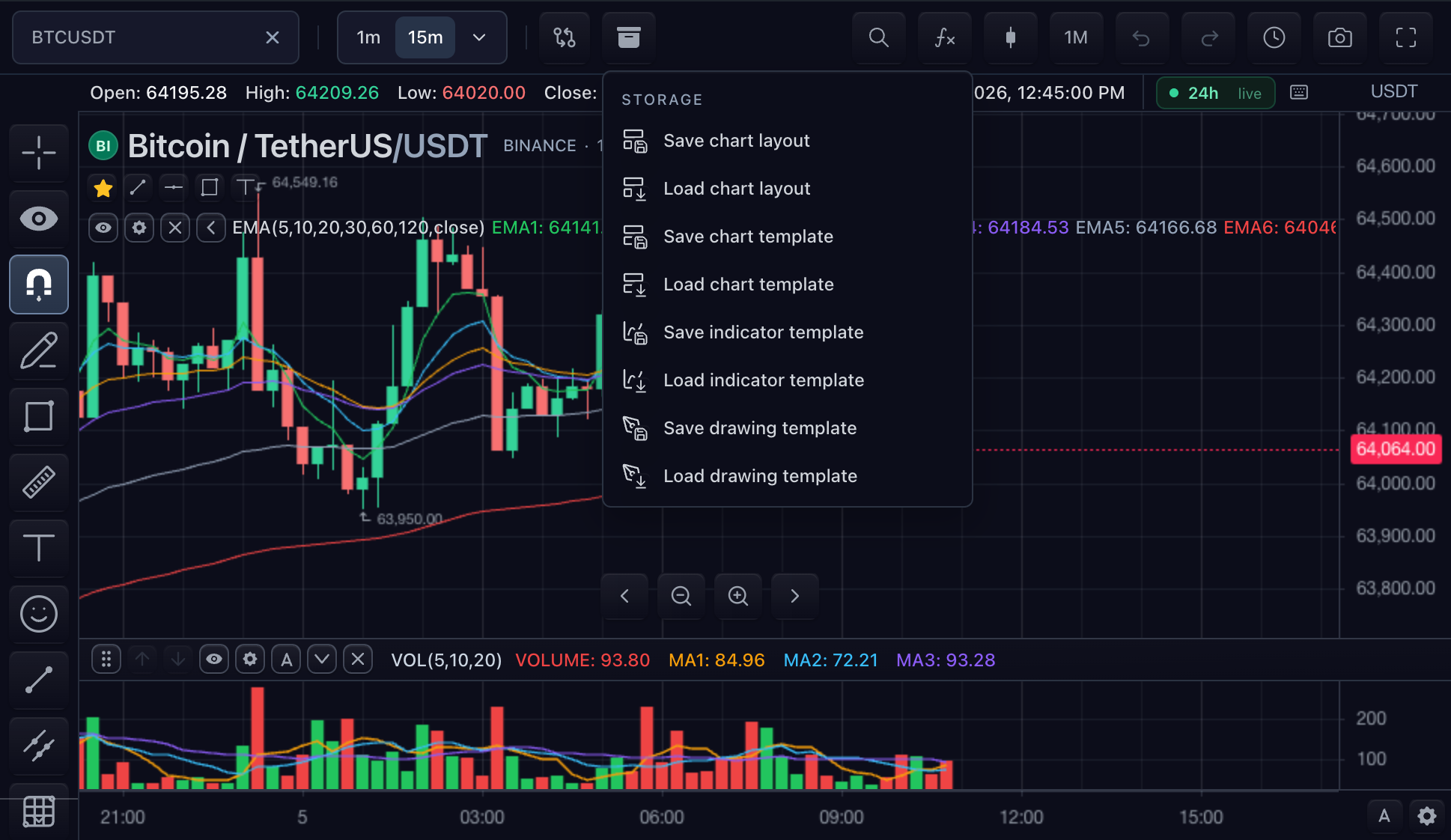

The widget uses the same storage controls with browser-local, REST, or custom persistence.

Before you start

Have a deployment lease and a working MarketDataFeed ready. Step 2 mounts the chart into a #chart element with a real height. See the general chart Quickstart for installation and SDK setup.

How chart storage talks to your backend

The SDK captures and applies public JSON objects. The adapter owns transport; your backend owns authentication, authorization, tenant routing, and durable records.

Use null for a record that does not exist. Reject authentication, permission, transport, and invalid-payload failures so the chart does not mistake them for a missing record.

1. Create the chart REST adapter

The built-in adapter maps the storage contract onto the documented REST endpoints. Resolve authentication headers for every request:

storage.ts

import { createRestChartStorageAdapter } from '@tradescript/pro/sdk';

declare const currentUser: { id: string };
declare const currentWorkspace: { id: string };
declare function getAccessToken(): Promise<string>;

export const storage = createRestChartStorageAdapter({
  baseUrl: 'https://api.example.com/chart-storage',
  apiVersion: 'v1',
  clientId: 'pro-terminal',
  userId: currentUser.id,
  workspaceId: currentWorkspace.id,
  headers: async () => ({
    Authorization: `Bearer ${await getAccessToken()}`,
  }),
});

Use a custom ChartStorageAdapter instead when your backend exposes different routes or transports, or when it must push drawing updates. The built-in REST adapter covers chart layouts, drawings and permissions, templates, user settings, and replay state. Backend integration compares both paths.

Verify before continuing:

• The adapter is created without making a request.
• A request resolves a fresh access token through headers().
• Your backend derives the authenticated user and allowed workspace from that token; query-string identifiers are routing context, not authorization.

2. Attach storage to a chart

Passing storage replaces the default browser-local adapter for this widget:

storageChart.ts

import {
  createTradeScriptSdk,
  type MarketDataFeed,
  type SdkSymbolInfo,
} from '@tradescript/pro/sdk/core';
import type { ChartStorageAdapter } from '@tradescript/pro/sdk';

declare const datafeed: MarketDataFeed;
declare const deploymentLease: string;
declare const storage: ChartStorageAdapter; // The adapter from step 1.

export const symbol: SdkSymbolInfo = {
  ticker: 'AAPL',
  exchange: 'NASDAQ',
  type: 'stock',
};

export const sdk = await createTradeScriptSdk({ lease: deploymentLease });
export const mounted = sdk.chart.mount({
  mount: '#chart',
  symbol,
  interval: '1D',
  datafeed,
  storage,
});

export const widget = await mounted.ready();
export const layouts = widget.chartLayouts();

Storage capability and UI visibility are separate. Adapter methods determine which operations exist; top-level features settings may hide or narrow their UI, but cannot add a missing operation.

Verify before continuing:

• The chart reaches ready() when no chart layouts have been saved yet.
• The storage button exposes the chart layout actions supported by the adapter.
• An expired token or denied request is surfaced as an error, not as an empty chart layout list.

3. Save, list, load, and delete one chart layout

Use the widget-owned chart layout controller for both single-chart and multi-chart workspaces:

verifyStorage.ts

import type { ChartWorkspaceLayoutControllerApi } from '@tradescript/pro/sdk';

declare const layouts: ChartWorkspaceLayoutControllerApi;

const saved = await layouts.saveAs('opening-drive', 'Opening drive');
console.log(saved.layoutId);  // 'opening-drive'
console.log(saved.storageId); // Backend-assigned record id

const summaries = await layouts.list();
const summary = summaries.find((item) => item.id === 'opening-drive');

const restored = await layouts.load('opening-drive');
if (!restored) {
  throw new Error('The saved chart layout was not found');
}

await layouts.delete('opening-drive');

layoutId is the SDK-side identity. storageId is the backend record identity returned when a chart layout is created; the controller retains the mapping so later saves update the same record in that session. If the two ids differ, persist layouts.getStorageIds() and call layouts.restoreStorageIds(...) before direct loads or updates in a later session. features.workspaceTabs does this through user settings when its required storage methods are present.

Verify before continuing:

• saveAs returns both identities and your backend receives one create.
• list() includes the saved name and logical id.
• After changing the chart, load() restores the saved symbol, interval, indicators, display settings, grid, and embedded drawings.
• A later save('opening-drive') updates the existing storageId instead of creating a duplicate.
• After delete(), the chart layout no longer appears in list().

For multi-chart workspaces, mount the same stable chart ids before loading. Chart-layout restore applies saved entries to matching controllers; it does not create a chart controller that the host did not mount.

4. Add only the state your product needs

Every ChartStorageAdapter method is optional. Implement one complete chart object family at a time, and use the separate WidgetLayoutStorageAdapter for widget panel arrangements:

Product need	Storage contract	Operations	Guide
Named chart workspaces across devices	ChartStorageAdapter	listLayouts, saveLayout, loadLayout, deleteLayout	Chart workspace layouts
Composed terminal or widget panel arrangement	WidgetLayoutStorageAdapter	load, save, delete	Widget layout storage
Drawings with separate records, sharing, or conflicts	ChartStorageAdapter	saveDrawings, loadDrawings; optionally permissions and subscriptions	Drawing storage
Reusable chart, indicator, or drawing presets	ChartStorageAdapter	listTemplates, saveTemplate, loadTemplate, deleteTemplate	Templates
Per-user preferences across chart layouts	ChartStorageAdapter	loadUserSettings, saveUserSettings, deleteUserSettings	User settings
Persisted bar-replay position	ChartStorageAdapter	loadReplayState, saveReplayState on the local, built-in REST, or custom adapter	Replay state

Chart layouts embed drawings by default. Choose separate drawing storage only when drawings require their own identity, sharing scope, revision, or conflict handling. Templates are reusable presets; user settings survive switching chart layouts; replay state is a separate controller snapshot.

Chart layouts and widget panel arrangements

ChartLayout is the state inside a chart workspace. WidgetLayoutState is the widget panel arrangement around those charts. Persist the widget panel arrangement through WidgetLayoutStorageAdapter, never as chart layout metadata. Keyboard shortcuts use a third, separate HotkeyStorageAdapter contract.

Production concerns

Identity and tenant isolation

Keep user, workspace, chart layout, drawing-bucket, and template identities stable. Authorize every operation on the backend; never trust a browser-supplied userId or workspaceId by itself.

Missing data and failures

Return null only when a requested object does not exist. Keep missing data, permission denial, revision conflict, malformed payloads, and transport failure observable as different outcomes.

JSON and versioning

Persist documented public JSON objects only. Do not store DOM nodes, canvas instances, React components, or live chart/controller objects. Version the HTTP contract independently from the version carried by stored payloads.

Next steps

• Backend integration — choose the REST or custom-adapter production path and establish backend ownership.
• Chart workspace layouts — workspace contents, create/update identity, tabs, and low-level APIs.
• Widget layout storage — persist a WidgetLayoutContainer or Trading Terminal panel arrangement through its own REST adapter.
• Drawing storage — embedded versus separate persistence, sharing buckets, and conflicts.
• Templates — reusable chart, indicator, and drawing presets.
• User settings — per-user values loaded before chart readiness.
• Storage UI — capability-driven menus and chart layout tabs.
